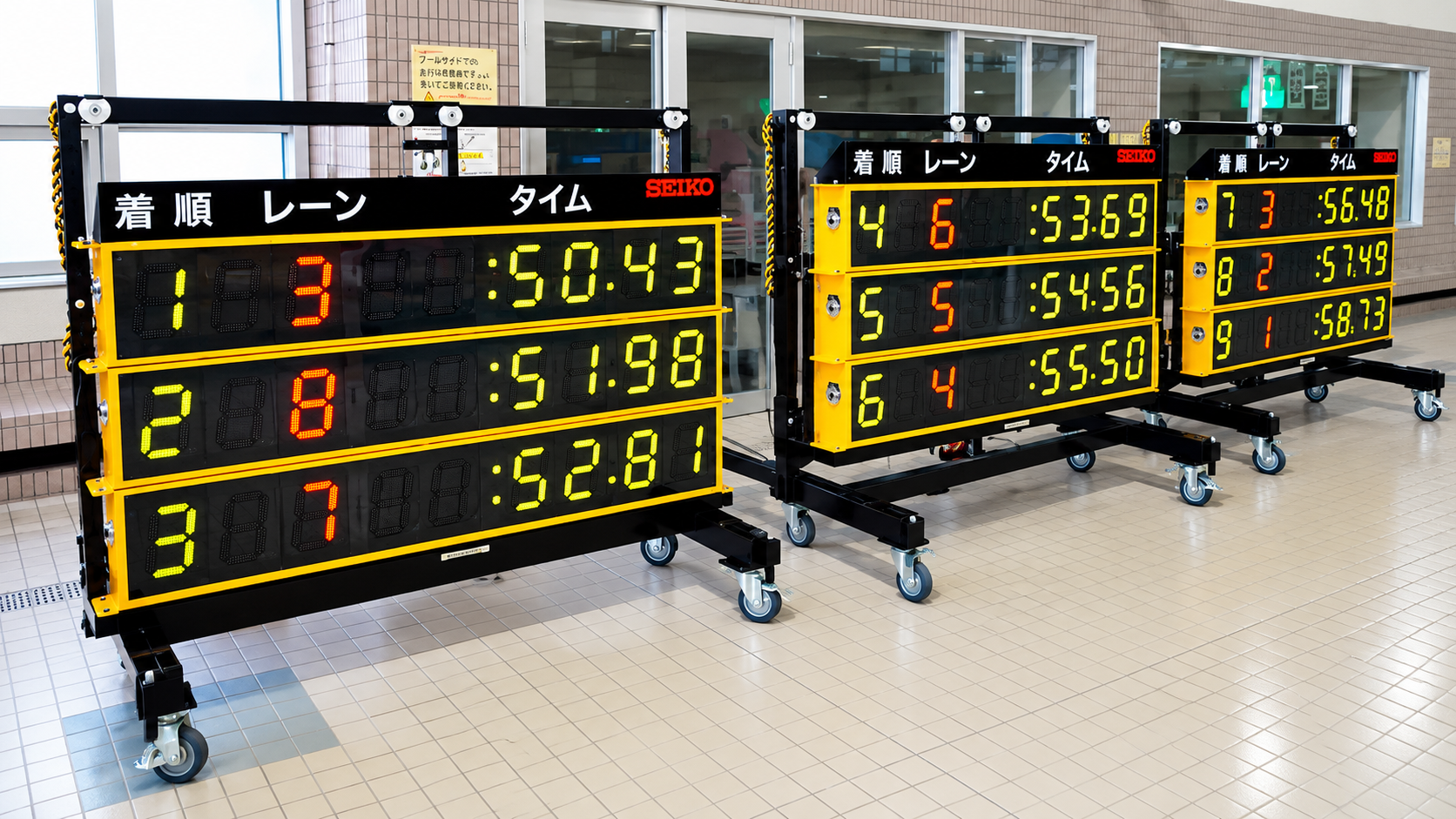

The SB-5010 Built-Up Type Scoreboard is a flexible and portable display system developed for swimming competitions and aquatic sports facilities. Its modular construction allows multiple lane display units to be combined based on the number of lanes being used, making it adaptable to different pool layouts and competition requirements.

The system can accommodate up to 11 lane display units and provides a viewing distance of approximately 100 metres. With an adjustable stand and external battery operation, the scoreboard is designed for convenient installation, movement and positioning around the pool facility.

Modular Display for Different Pool Configurations

The SB-5010 uses an individual lane display concept. Up to 11 display units can be assembled together to create a complete scoreboard. This modular arrangement allows the facility to select the required number of displays according to the number of competition lanes and the pool configuration.

High Visibility & Large Characters

The scoreboard uses electromagnetic 7-segment displays with 200 mm character height. The large characters provide clear race information and can be viewed from approximately 100 metres under appropriate conditions, helping swimmers, officials and spectators read the displayed results easily.

Portable & Battery-Powered Operation

The SB-5010 receives power through the SB-5020 controller from an external battery. This arrangement eliminates dependence on a fixed power connection and makes the scoreboard easier to relocate. The adjustable PL-04S stand also provides flexibility in positioning the display around the pool deck.

Key Features

• Modular Lane Display System - Up to 11 individual display units can be combined according to the number of competition lanes.
• Suitable for Different Pool Configurations - The number of display units can be selected to suit the pool and competition arrangement.
• Excellent Viewing Distance - Large display characters can be viewed from approximately 100 metres under suitable conditions.
• Adjustable Stand Height - The PL-04S stand provides adjustable height for improved viewing positioning.
• Fixed or Portable Configuration - The scoreboard can be installed as a fixed system or relocated when portability is required.
• Battery Powered - External battery operation allows convenient relocation without dependence on a permanent power connection.
• Large 200 mm Characters - Electromagnetic 7-segment displays provide large and readable race information.
• Single-Lane Display Unit - Each SB-5010 unit is intended to display information for one swimming lane.
• Durable Construction - Designed for dependable operation in demanding swimming competition environments.

Technical Specifications

Flexible Display for Professional Competitions

The SB-5010 Built-Up Type Scoreboard provides a scalable and highly visible display solution for professional swimming events. Its modular construction allows the scoreboard size to be selected according to lane count, while the external battery arrangement and adjustable stand make installation and relocation convenient for different aquatic events.

Advantages of Built-Up Type Scoreboard

• Modular configuration supporting up to 11 lanes.
• Flexible arrangement for different pool layouts.
• Approximately 100 metre viewing distance under suitable conditions.
• Large 200 mm characters for improved readability.
• Adjustable stand height for convenient viewing.
• External battery operation for easy relocation.
• No requirement for a fixed power connection.
• Robust construction suitable for competition environments.
• Suitable for both fixed and portable applications.

Scalable and Visible Timing Displays

The SB-5010 Built-Up Type Scoreboard offers a scalable display solution for professional swimming competitions. Its modular assembly allows the system to be configured according to the required number of lanes. Combined with battery-powered operation, an adjustable stand and large electromagnetic display characters, it provides a practical scoreboard solution for aquatic sports facilities.
