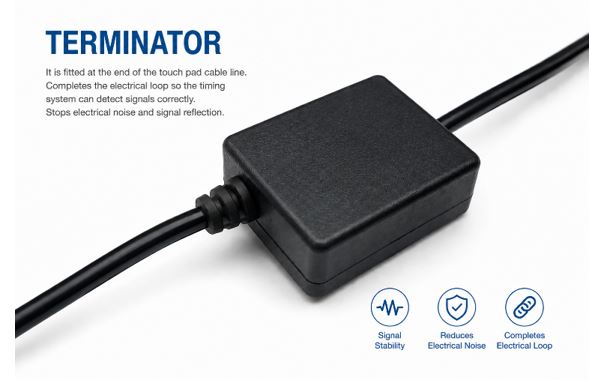

The Terminator is an essential component installed at the end of the touch pad cable line in an electronic swimming timing system. It completes the electrical circuit, allowing the timing system to correctly recognize signals from the touch pad. By helping reduce electrical noise and signal reflection, the Terminator supports stable signal transmission and contributes to accurate and consistent race time recording.

Essential Circuit Completion

In an electronic swimming timing system, proper electrical termination is critical. The Terminator is installed at the end of the touch pad cable line to complete the electrical loop. Without it, the timing system may fail to accurately detect the electrical signals generated when a swimmer touches the pad.

Noise Reduction & Signal Integrity

Long cable runs in aquatic environments are susceptible to electrical noise and signal reflection. The Terminator acts as a stabilizer, absorbing these reflections and minimizing unwanted interference. This ensures that the data transmitted to the printing timer is clean, stable, and free from distortions.

Dependable Race Timing

By ensuring stable signal transmission, the Terminator directly contributes to the accuracy of race time recording. It helps the central timing system distinguish between a genuine swimmer's touch and background electrical disturbances, preventing false triggers and missed finishes.

Key Features

• Touch Pad Cable Termination - Installed at the end of the touch pad cable line to properly close the electrical circuit.
• Completes the Electrical Loop - Ensures the circuit is properly terminated for reliable and accurate signal detection by the timer.
• Reduces Electrical Noise - Helps minimize unwanted electrical interference and noise in the signal line.
• Prevents Signal Reflection - Reduces signal reflection that can distort electronic timing signals along long cable runs.
• Stable Signal Transmission - Supports consistent and clean communication between touch pads and the central timing system.
• Accurate Time Recording - Helps maintain reliable, precise, and dependable swimming race timing results.

How It Works

The Terminator is connected at the end of the touch pad cable line to properly terminate the electrical circuit.

Touch Pad → Cable Line → Terminator → Stable Signal Transmission → Timing System

Proper termination helps the system distinguish genuine touch signals from unwanted electrical disturbances, supporting dependable timing performance.

Advantages

• Completes the electrical circuit for touch pads.
• Reduces electrical noise and interference.
• Prevents signal reflection along cable lines.
• Ensures clean and stable signal transmission.
• Helps prevent false finish triggers.
• Contributes to accurate and consistent race results.
• Essential component for professional timing setups.
• Easy to install at the end of the cable run.

Signal Stability for Accurate Officiating

The Terminator is a small but vital component in professional swimming timing systems. By properly completing the electrical circuit and eliminating signal noise, it ensures that every touch pad signal is transmitted clearly and accurately, supporting dependable race officiating and trustworthy results.
