Professional Electronic Start System for Competitive Swimming

The PS-1300 Electronic Starting System is designed to provide a clear, synchronized start signal for competitive swimming events. When the electronic start sound is generated, the system simultaneously sends a start signal to the printing timer, helping ensure accurate and coordinated race timing. The system offers two selectable start sounds—beep and gunfire—and incorporates a highly visible strobe positioned at the top of the pistol, allowing swimmers to clearly see the visual start signal.

Synchronized Start for Accurate Timing

When the electronic start sound is generated, the PS-1300 simultaneously sends a start signal to the connected printing timer. This synchronization ensures that timing begins at the exact moment the swimmers hear the signal, providing accurate and coordinated race results.

Selectable Sounds & Visual Strobe

The system offers two selectable start sounds—beep and gunfire—allowing officials to choose the best option for the event environment. A highly visible strobe light positioned at the top of the electronic pistol provides a clear visual start indication, essential for swimmers with hearing impairments or in noisy aquatic environments.

Integrated & Portable Configuration

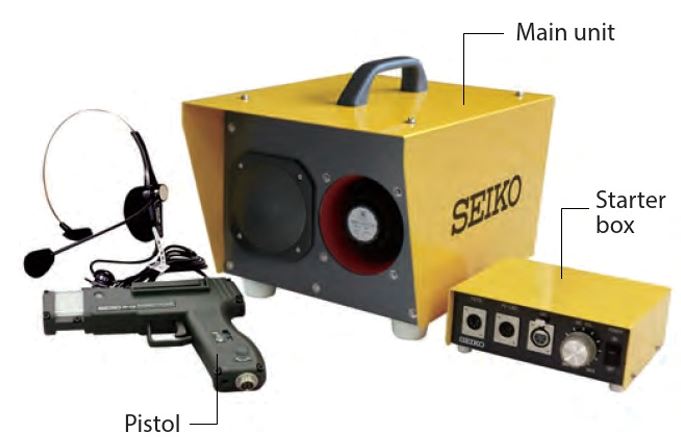

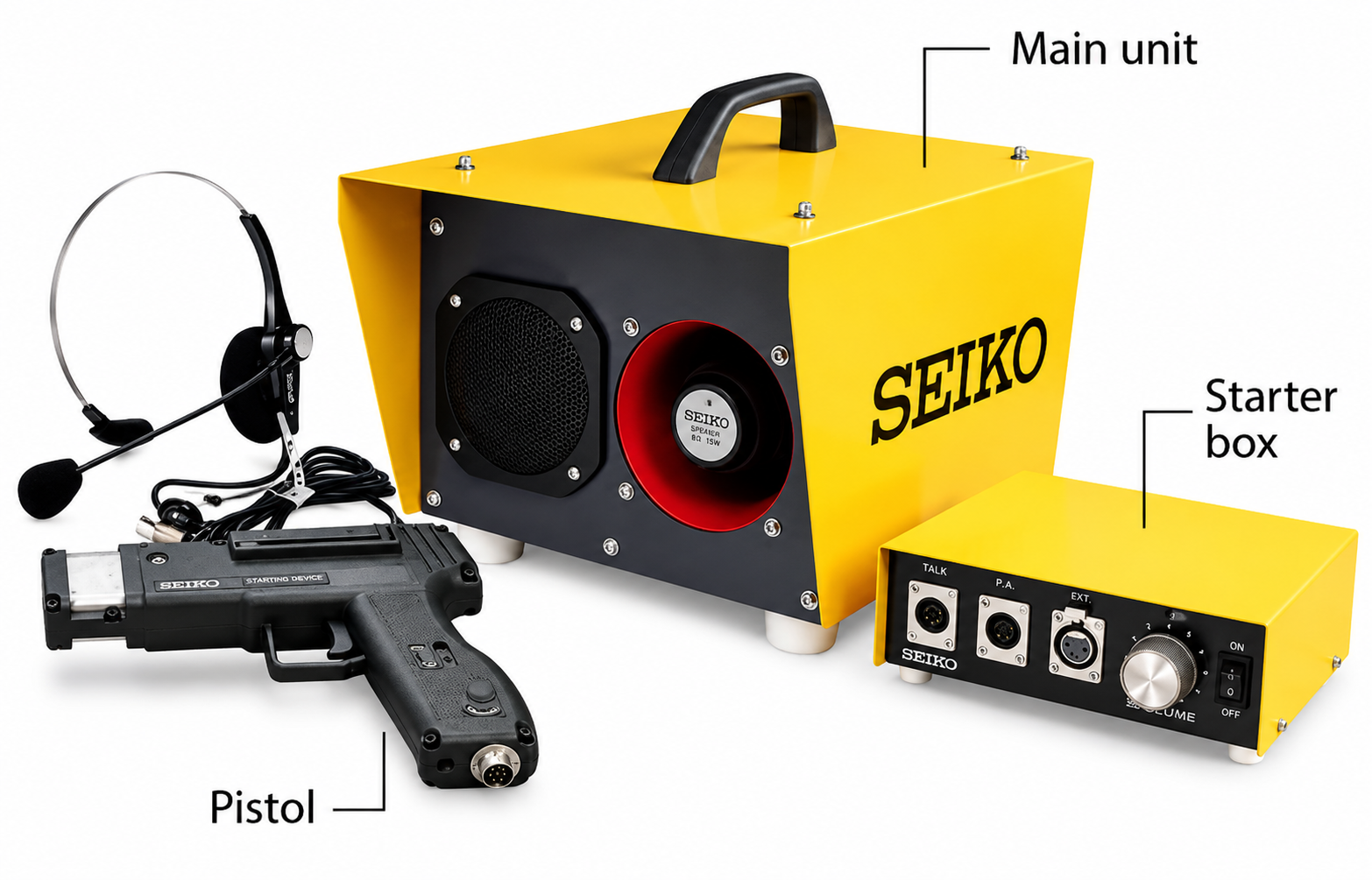

Comprising a main unit, a compact starter box, and a lightweight aluminium electronic pistol, the PS-1300 provides a complete and coordinated race-start system. The dedicated starter box ensures convenient operation, while the portable pistol design allows easy handling by the race starter.

Key Features

• Synchronized Electronic Start Signal — Generates the start sound and sends the start signal to the printing timer simultaneously for coordinated timing.
• Two Start Sound Options — Choose between beep and gunfire sounds according to event requirements and pool environment.
• Highly Visible Strobe — Strobe light positioned at the top of the pistol provides an easy-to-see visual start signal for swimmers.
• Professional Competition Application — Designed specifically for use with professional electronic swimming timing systems.
• Dedicated Starter Box — Compact starter box provides convenient and reliable operation during competitions.
• Portable Pistol Design — Lightweight aluminium pistol ensures easy and comfortable handling by the race starter.
• Reliable Power Supply — Main unit operates on a DC 12 V, 17 Ah rechargeable valve-regulated battery system.
• Integrated System Configuration — Main unit, starter box, and electronic pistol work together seamlessly for a coordinated race-start system.

PS-1300 Main Unit

• Model: PS-1300
• Power Supply: DC 12 V, 17 Ah
• Battery: Small-sized valve-regulated lead-acid battery
• Dimensions: W 264 × H 203 × D 390 mm
• Approx. Weight: 14.5 kg

Starter Box

• Dimensions: W 183 × H 62 × D 150 mm
• Approx. Weight: 1.3 kg

Electronic Pistol

• Power Supply: DC 3 V
• Battery: 2 × LR06 "AA" alkaline dry batteries
• Material: Aluminium
• Dimensions: W 210 × H 40 × D 145 mm
• Approx. Weight: 0.4 kg, excluding batteries and cord

How the PS-1300 Works

1. Starter Activates the System – The electronic pistol is operated by the race starter.
2. Start Sound Is Generated – The selected beep or gunfire sound is produced.
3. Visual Signal Is Activated – The strobe provides a clearly visible start indication.
4. Timer Signal Is Sent Simultaneously – The starting signal is transmitted to the printing timer at the same time as the start sound.
5. Race Timing Begins – The synchronized signal enables accurate electronic race timing.

Advantages of Electronic Starting System

• Synchronized sound and timer signal for accurate race starts.
• Selectable beep and gunfire start sounds.
• Highly visible strobe light for visual start indication.
• Lightweight and portable aluminium electronic pistol.
• Compact and convenient dedicated starter box.
• Reliable rechargeable battery system for the main unit.
• Seamless integration with electronic timing systems.
• Professional design for competitive swimming events.

Clear, Synchronized Starts for Competitive Swimming

The PS-1300 Electronic Starting System provides reliable, synchronized start signals for competitive swimming events. With selectable start sounds, a highly visible strobe, and seamless integration with electronic timing systems, it ensures accurate and coordinated race timing for professional aquatic facilities.
