The SEIKO Underwater Lap Counter System is designed to help swimmers accurately keep track of the remaining number of laps during long-distance swimming races. An underwater display board installed in each lane provides a clear visual indication of the remaining laps, allowing swimmers to monitor their progress without relying on external signals.

Operating in synchronization with the swimming printing timer, the system automatically calculates the remaining number of laps and transmits the information to the underwater display boards. The two-digit, high-intensity LED display provides excellent visibility, helping swimmers maintain awareness of their race progress and supporting the safe and smooth operation of long-distance competitions.

Real-Time Lap Tracking for Swimmers

An underwater display board installed in each lane provides a direct, clear visual indication of the remaining laps. This allows swimmers to confidently monitor their own progress during long-distance races without relying on external signals or deck officials, reducing the risk of miscounting.

Automatic Calculation & Synchronization

Operating in seamless synchronization with the swimming printing timer, the system automatically calculates the remaining number of laps as the race progresses. This automated process eliminates manual tracking errors and ensures that the data transmitted to the underwater displays is always accurate and up-to-date.

High-Visibility Underwater LED Display

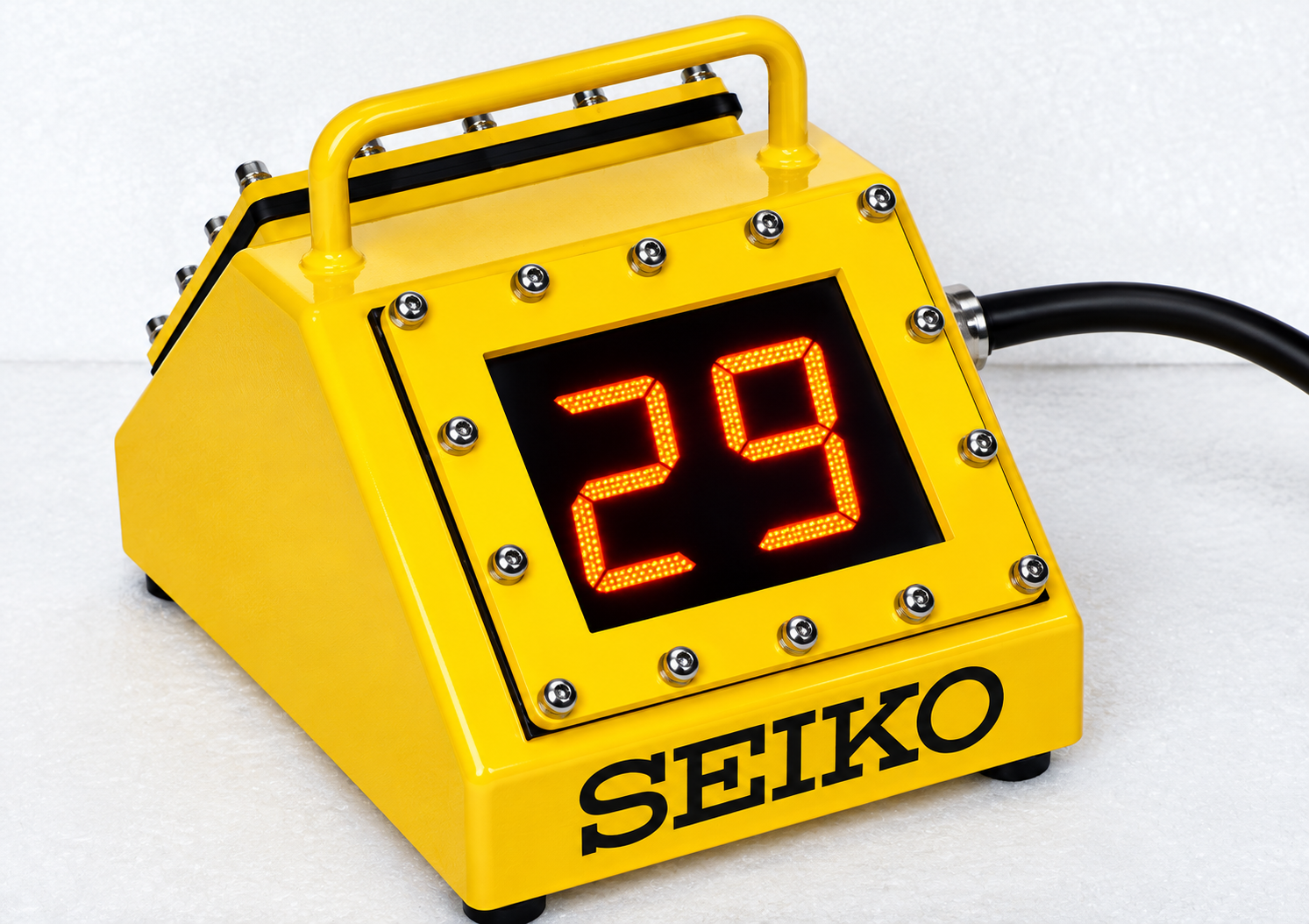

The two-digit, 7-segment high-intensity red LED display features a large 45 mm character height, providing excellent visibility even in poorly lit aquatic environments. The durable stainless steel construction with a protective yellow matte acrylic resin coating ensures long-lasting performance underwater.

Key Features

• Real-Time Remaining Lap Display - Clearly informs swimmers of the number of laps remaining during long-distance races.
• Automatic Lap Calculation - The operation board automatically calculates the remaining laps in synchronization with the printing timer.
• Underwater Lane Display - Dedicated display boards are installed underwater in each lane for direct visibility to swimmers.
• High-Intensity LED Display - Two-digit 7-segment LED display provides clear and easy-to-read lap information underwater.
• 45 mm Character Height - Large characters on the underwater display enhance visibility for swimmers during the race.
• Synchronized Timing System - Designed to operate together with the swimming printing timer for automated accuracy.
• Individual Lane Information - Lap information can be displayed independently for each swimming lane.
• Durable Construction - Underwater display uses stainless steel with a protective yellow matte acrylic resin coating.
• Professional Competition Application - Designed specifically for long-distance swimming competitions and aquatic sports facilities.

Technical Specifications

• W 150 × H 117 × D 200 mm
• W 171 × H 55 × D 121 mm
• W 305 × H 155 × D 255 mm, excluding protrusions
• Stainless steel with yellow matte baked acrylic resin coating
• ABS resin
• Stainless steel / Aluminium trunk
• Gray matte acrylic resin coating
• 7-segment LED, red
• 45 mm
• 7-segment LED, red
• 15 mm
• DC 12 V, supplied from repeater
• DC 12 V
• Approx. 9.5 kg, including cables

How the System Works

1. Race Information Is Entered – The required race and lap information is configured through the operation board.

2. System Synchronizes with the Timer – The system operates in coordination with the swimming printing timer.

3. Remaining Laps Are Automatically Calculated – The operation board processes the race information and determines the number of laps remaining.

4. Information Is Sent to Lane Displays – The calculated information is transmitted to the underwater display boards.

5. Swimmers View the Remaining Laps – High-intensity LED displays allow swimmers to easily monitor their remaining distance.

Advantages of Poolum Top-Mounted Sand Filters

• Real-time remaining lap display for swimmers.
• Automatic calculation reduces manual counting errors.
• Synchronized operation with printing timer.
• High-intensity red LED for excellent underwater visibility.
• Large 45 mm character height is easy to read.
• Dedicated display boards for individual lanes.
• Durable stainless steel and acrylic resin construction.
• Essential for long-distance swimming competitions.

Accurate Lap Tracking for Long-Distance Races

The SEIKO Underwater Lap Counter System provides swimmers with a clear, real-time display of remaining laps, ensuring confident pacing and smooth operation during long-distance competitions. With automatic synchronization, high-visibility LED displays, and durable underwater construction, it is an essential tool for professional aquatic facilities.
