Lane-Wise Signal Management for Swimming Timing Systems

The LB-90~99 / LB-9S / LB-9M Lane Box is designed to efficiently collect and organize multiple signals from each swimming lane and transmit them to the PT-8000X Printing Timer through a single compact unit.

By consolidating signals from the touch pad, relay error sensor, and 3-grip switches, the Lane Box helps simplify wiring and ensures that timing-related information from each lane is correctly organized and communicated to the central timing system.

Efficient Lane-by-Lane Data Sorting

The Lane Box acts as a central hub for individual swimming lanes, organizing timing and race signals so they are correctly communicated to the printing timer.

This lane-by-lane sorting ensures accurate data management and helps prevent signal confusion during fast-paced swimming competitions.

Multiple Signal Integration

By combining signals from the touch pad, relay error sensor, and 3-grip switches, the Lane Box consolidates up to five essential timing signals into a single unit.

This integration significantly simplifies poolside wiring and ensures dependable signal transmission between lane-side equipment and the central timing system.

Durable & Compact Design

Manufactured from robust ABS plastic, the Lane Box is built for reliable use in demanding aquatic facility environments.

Its compact and lightweight design makes installation convenient and helps keep the pool deck organized while reducing unnecessary cable clutter.

Key Features

• Lane-by-Lane Data Sorting – Organizes timing and race signals according to individual swimming lanes for clear and accurate data management.
• Multiple Signal Integration – Combines signals from touch pads, relay error sensors, and 3-grip switches into one unit.
• Single-Unit Transmission – Five signals are transmitted to the printing timer through one lane box, simplifying wiring.
• Compatible with PT-8000X – Designed to work seamlessly with the PT-8000X Printing Timer system.
• Compact & Lightweight – Small footprint makes installation and integration convenient on the pool deck.
• Durable ABS Construction – Manufactured from ABS plastic for reliable, long-term use in aquatic facility environments.
• Professional Competition Application – Suitable for electronic swimming race timing and lane management systems.

Technical Specifications

Signal Management

The Lane Box acts as an interface between the lane-side equipment and the central printing timer.

Touch Pad + Relay Error Sensor + 3-Grip Switches → Lane Box → PT-8000X Printing Timer

This arrangement allows signals from individual lanes to be collected and transmitted efficiently, supporting accurate and organized race timing.

Advantages

• Consolidates multiple lane signals into a single unit.
• Simplifies poolside wiring and reduces cable clutter.
• Organizes timing data lane-by-lane for accurate officiating.
• Provides seamless integration with the PT-8000X Printing Timer.
• Combines touch pad, relay sensor, and grip switch inputs.
• Compact and lightweight for easy installation.
• Durable ABS plastic construction for aquatic environments.
• Essential component for professional race management.

Professional Competition Application

The Lane Box is suitable for electronic swimming race timing and lane management systems where accurate and organized signal transmission is essential.

It provides a practical interface between lane-side timing equipment and the PT-8000X Printing Timer, helping competition officials maintain reliable race data and efficient timing operations.

Applications

• Professional Swimming Competitions
• Electronic Swimming Race Timing
• Multi-Lane Swimming Pools
• Swimming Clubs
• Aquatic Sports Facilities
• Competition Swimming Pools
• Professional Race Management Systems

Organized Signal Management for Accurate Timing

The LB-90~99 / LB-9S / LB-9M Lane Box provides efficient, lane-by-lane signal collection and transmission for competitive swimming timing systems.

By consolidating multiple inputs into a single unit, it simplifies installation, reduces wiring complexity, and ensures accurate data delivery to the PT-8000X Printing Timer.

Reliable Lane Signal Management

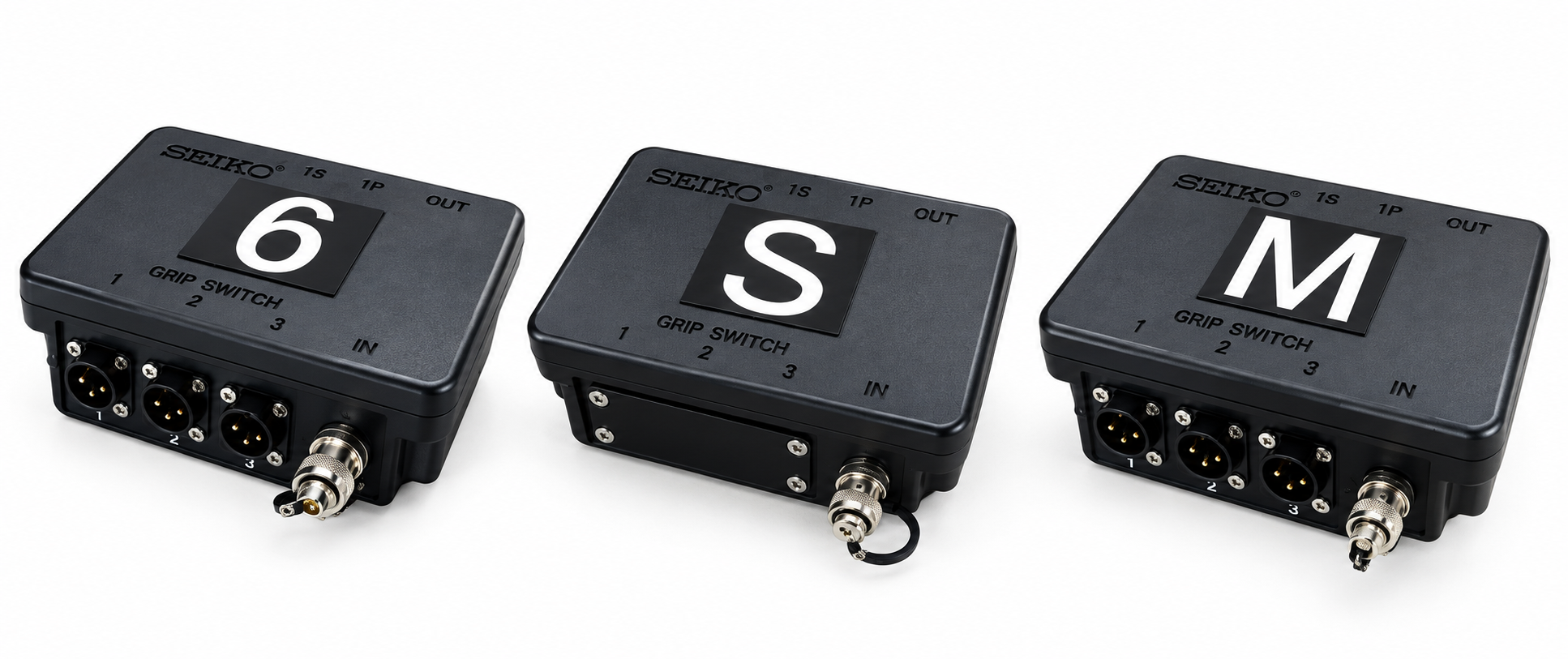

The Lane Box Multi Lane Type provides a compact and dependable solution for managing signals from individual swimming lanes. Its ability to combine multiple timing inputs and transmit them through a single organized interface makes it an essential component of professional electronic swimming timing systems.

With durable ABS construction, compact dimensions, lightweight design, and seamless PT-8000X compatibility, the Lane Box helps create a cleaner, more organized, and reliable poolside timing installation.
