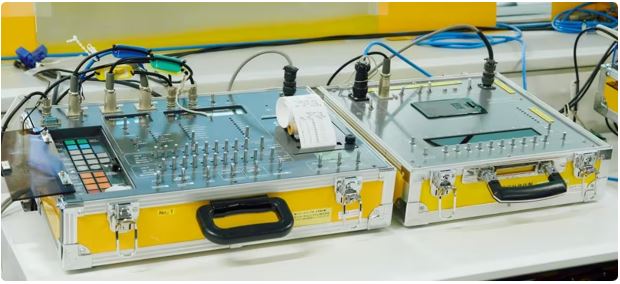

The PT-8000X Printing Timer is a dedicated, reliable, and easy-to-operate timing system designed specifically for swimming races and competition timing. It integrates essential timing functions into a single compact unit, eliminating the need for general-purpose computers or specialized software.
With automatic operation backup, high-accuracy timing, large memory capacity, an easy-to-read LCD display, and a built-in high-speed printer, the PT-8000X provides stable and efficient race timing with immediate printed results.
The PT-8000X is specifically developed for swimming competitions and provides essential race timing functions in one compact and dependable system. Its dedicated design allows operators to manage swimming race timing without the complexity of a general-purpose PC or specialized software.
The printing timer uses a highly accurate crystal oscillator with an accuracy of less than 1 ppm at normal temperatures. Automatic operation backup helps minimize errors caused by incorrect operation and ensures dependable timing during competitions.

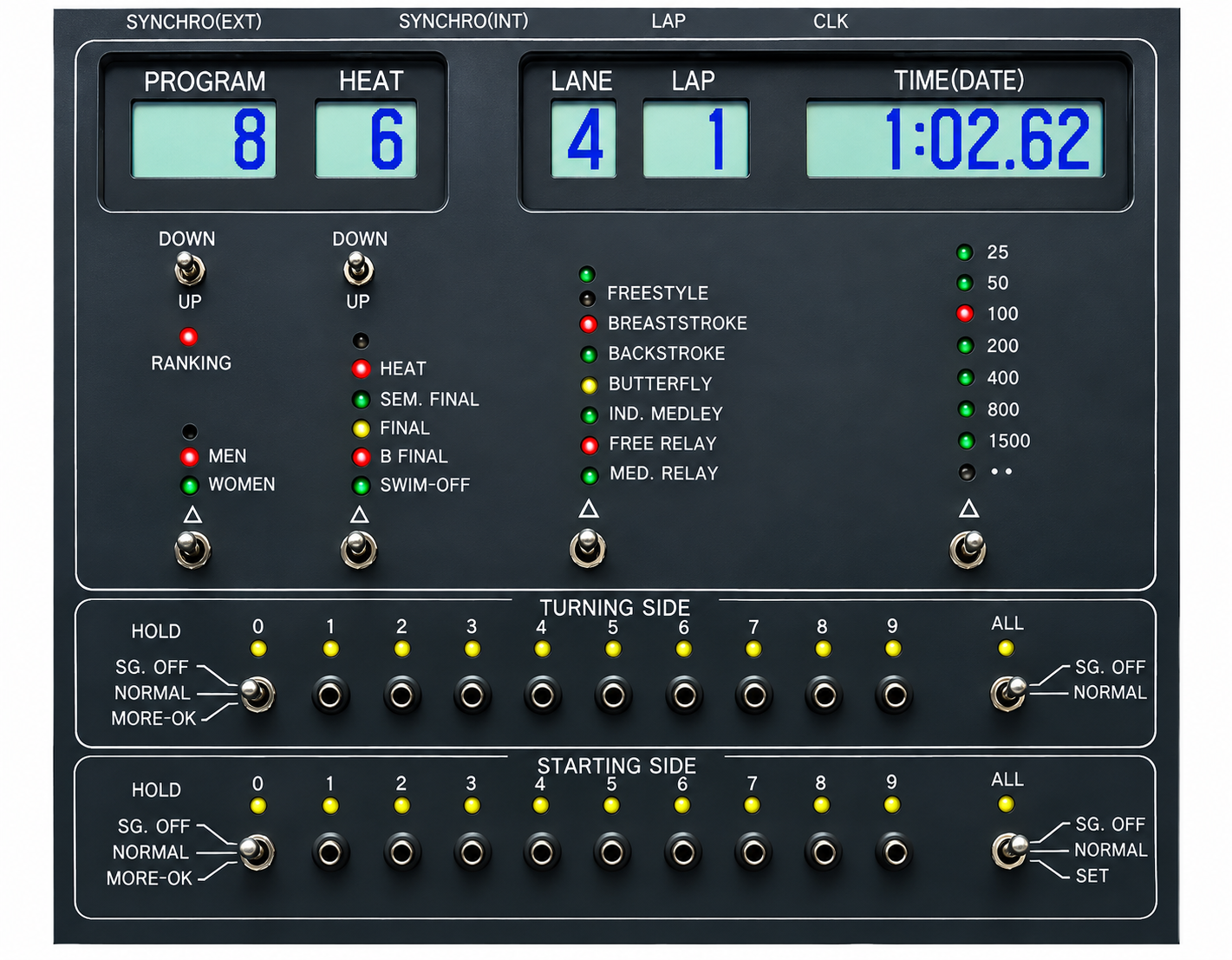

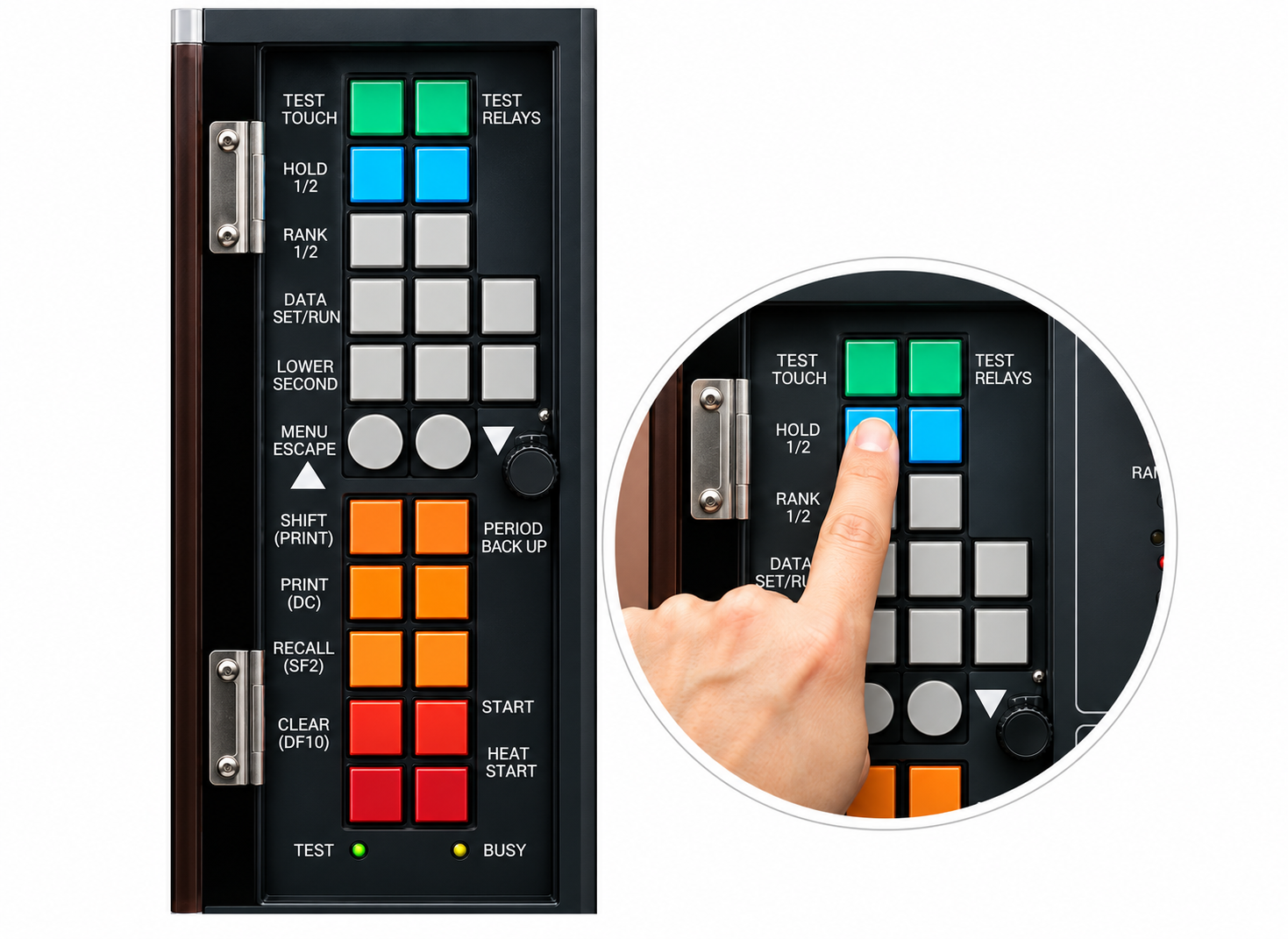

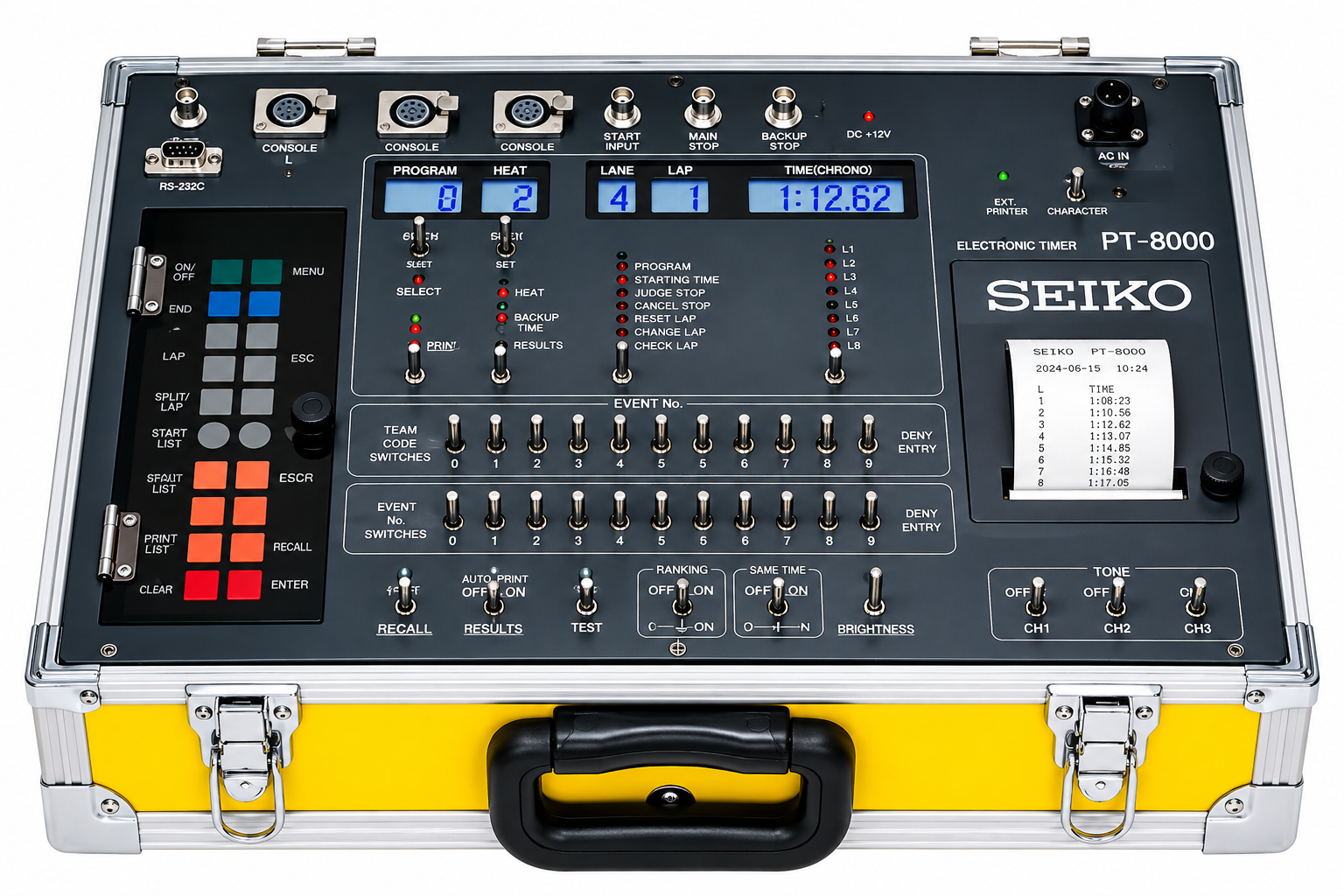

Designed in a compact attache-case format, the PT-8000X is practical to transport and operate at different swimming facilities. The control panel is conveniently positioned on the top, while the built-in high-speed printer provides quick printed records of race and timing information.
| Timing Accuracy | Crystal oscillator type, less than 1 ppm at normal temperatures |
|---|---|
| Timing Resolution | 1/100 second |
| Same Finish Time | Same place assigned to the same finish time |
| Maximum Timing | 59 minutes 59 seconds |
| Number of Lanes | 10 lanes |
| Race Distances | 25 m, 50 m, 100 m, 200 m, 300 m, 400 m, 800 m, 1,500 m and unspecified |
| Memory Capacity | Up to 400 races |
| Pool Length | 25 m / 50 m |
| Power Supply | DC 12 V battery with dedicated charger |
| Battery | Built-in NiCd battery |
| Operating Temperature | 0°C to +40°C |
| Operating Humidity | 30% to 80% |
| Construction | Attache case type with top-mounted control panel |
| Dimensions | W 474 × H 136 × D 328 mm, excluding protruding portions |
| Weight | Approx. 8.0 kg, including case |
The PT-8000X Printing Timer is suitable for swimming competitions, aquatic centres, sports complexes, swimming clubs, training facilities, and other locations where accurate and dependable swimming race timing is required.
The PT-8000X Swimming Printing Timer combines accurate race timing, convenient operation, large data storage, and high-speed printing in a single portable system. Its dedicated design makes it an ideal solution for facilities requiring dependable swimming race timing without the complexity of a computer-based system.
With accurate timing, automatic operation backup, a large race-memory capacity, an easy-to-read LCD display, and integrated high-speed printing, the PT-8000X provides a practical and efficient timing solution for swimming competitions and professional aquatic facilities.
